Professional UHF Antenna Distribution System

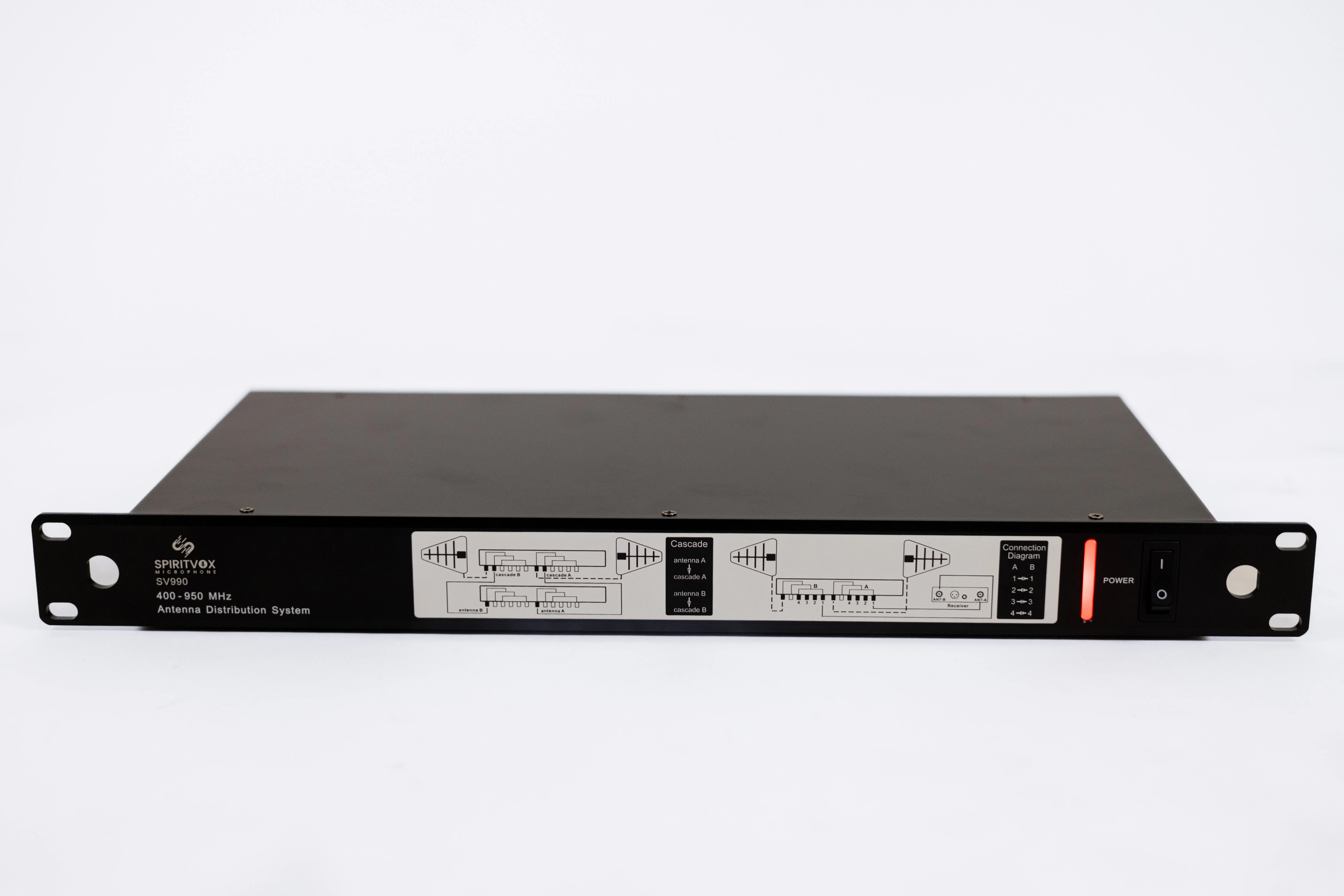

The spiritvox SV-990 provides robust signal distribution for wireless microphone systems, featuring two high-gain directional antennas, eight BNC outputs, and cascade support for 400-950MHz UHF bands, ideal for large venues and multi-receiver setups.

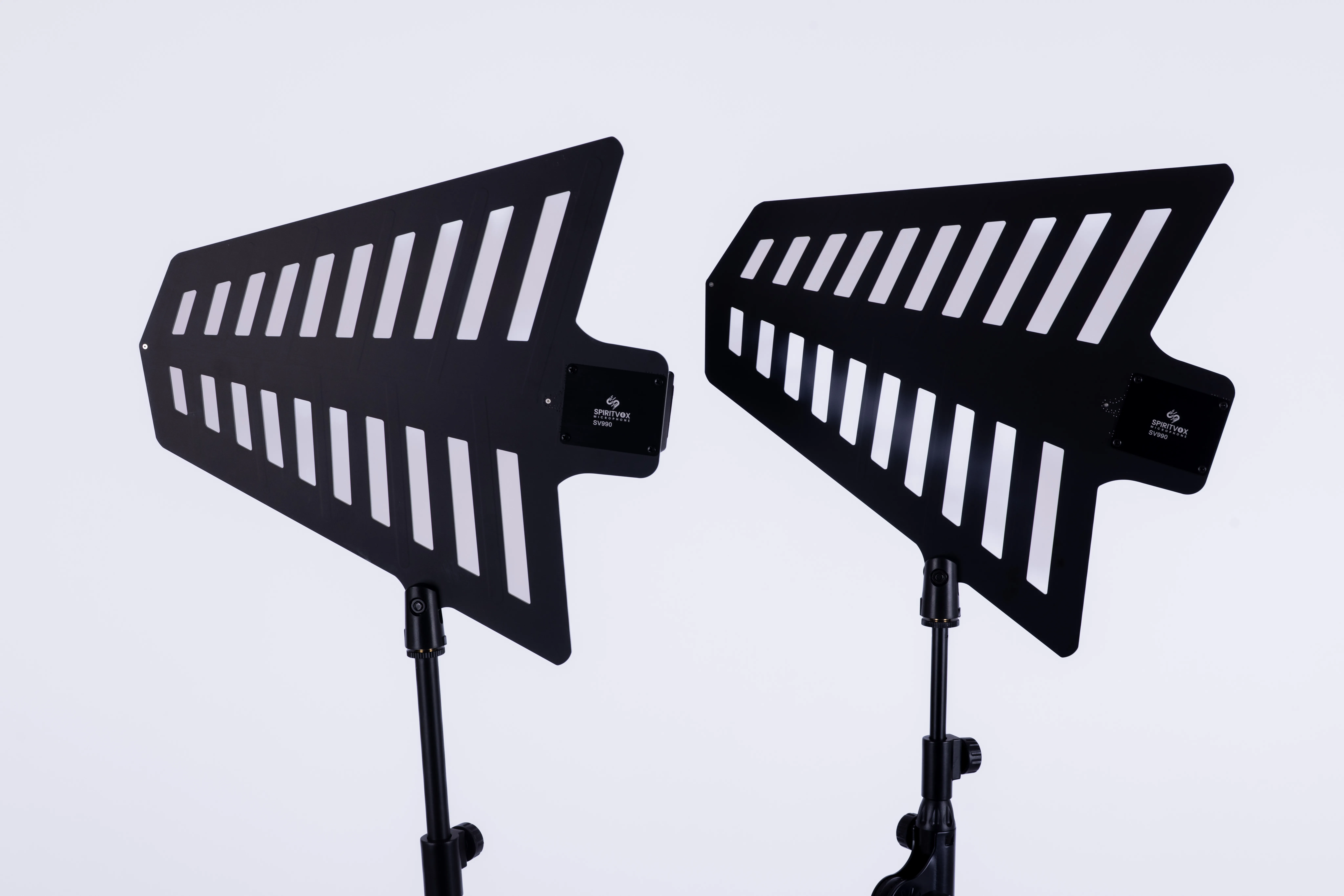

Antenna System
- Frequency Range: 400-950MHz
- Polarization: Vertical
- Cascade Support: Link multiple units
Connectivity

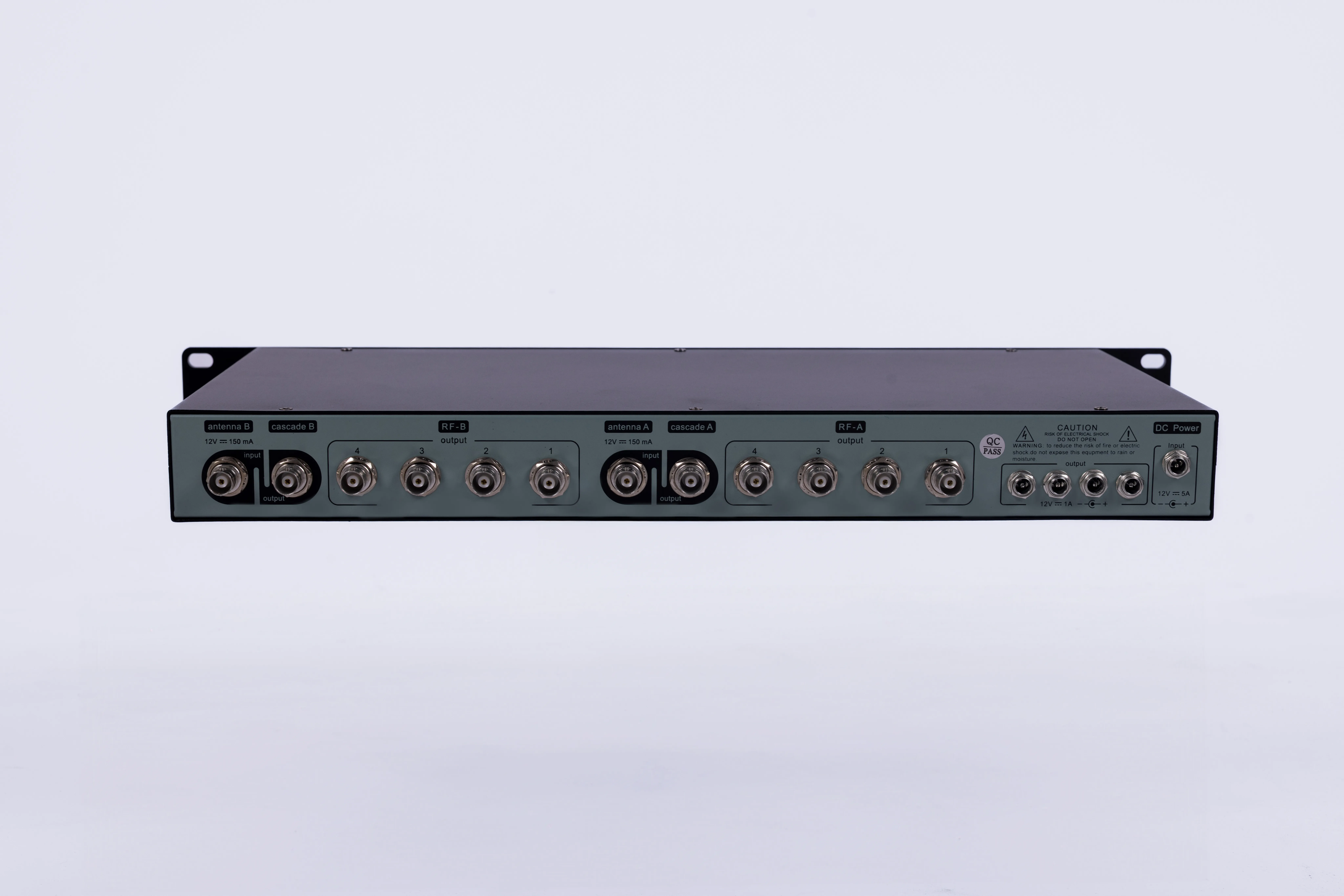

- Outputs: 8× BNC (50Ω)
- Antenna Links: 4× BNC-SMC
- Coupling: TNC-BNC, vibration-resistant
- Impedance: 50Ω
Power System
- Power Supply: 12V DC, 2A adapter
- Consumption: 20W max
- Power Distribution: 4× DC outputs for receivers
- Protection: Overcurrent, short-circuit

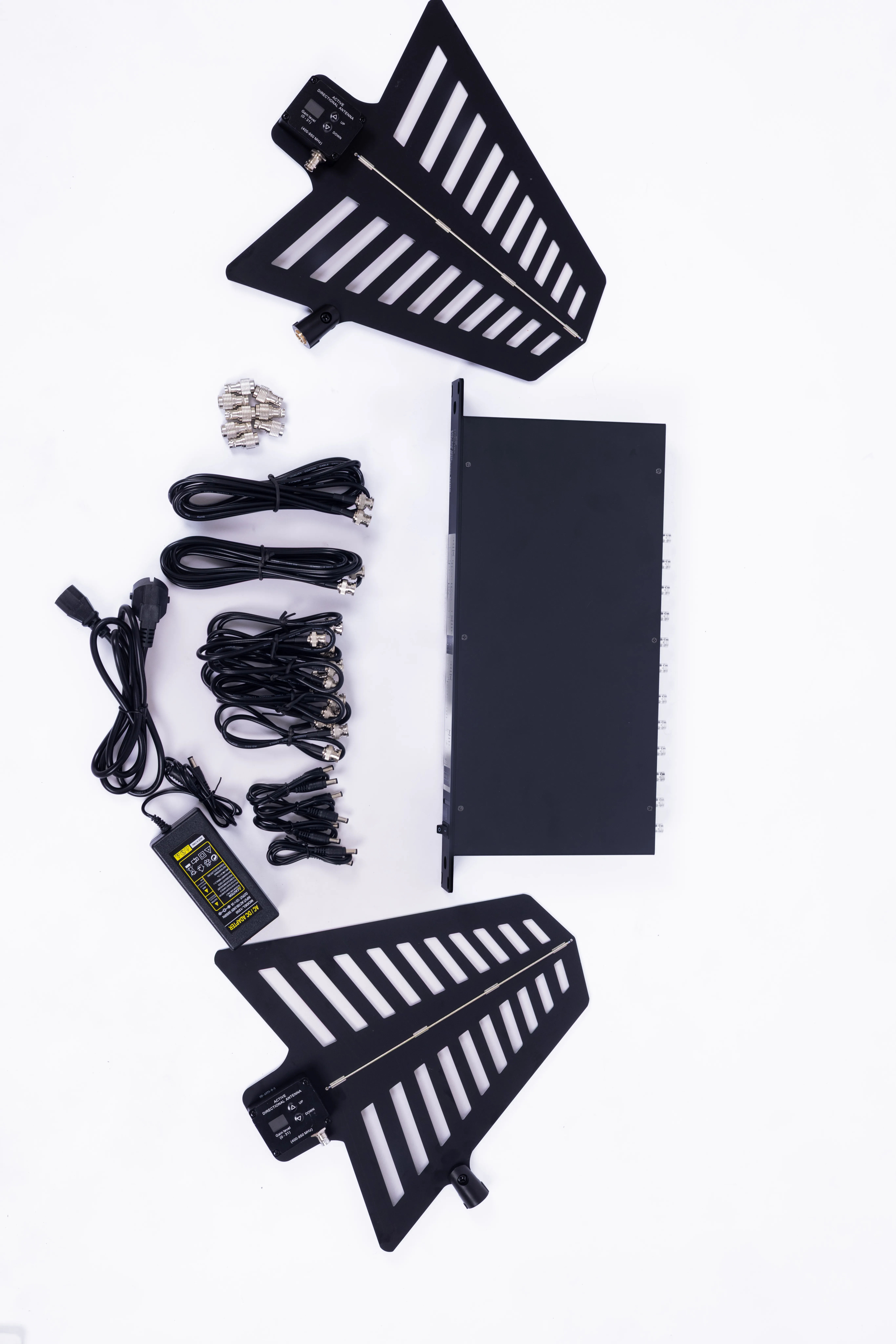

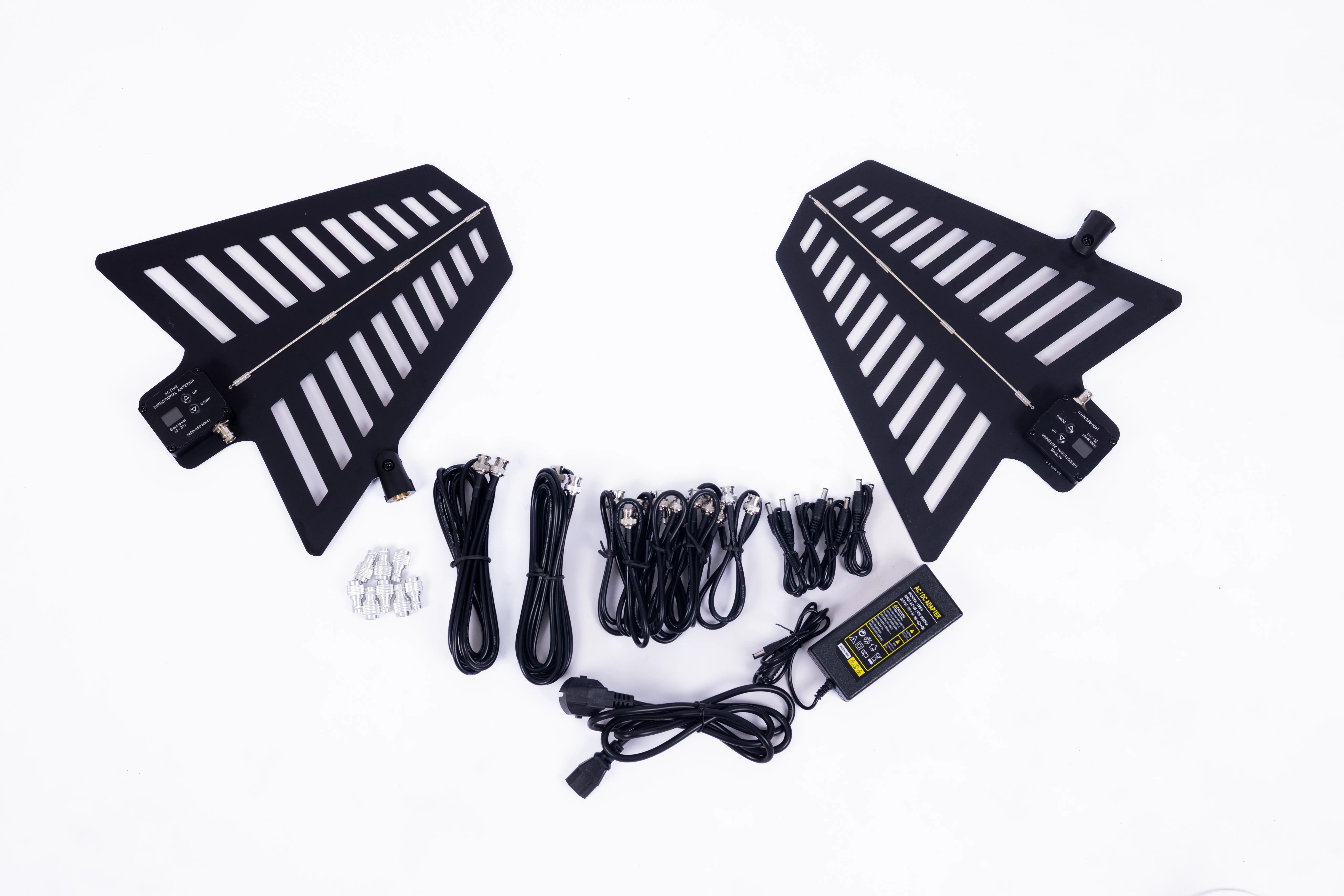

Accessories
- Weatherproofing: Optional kit

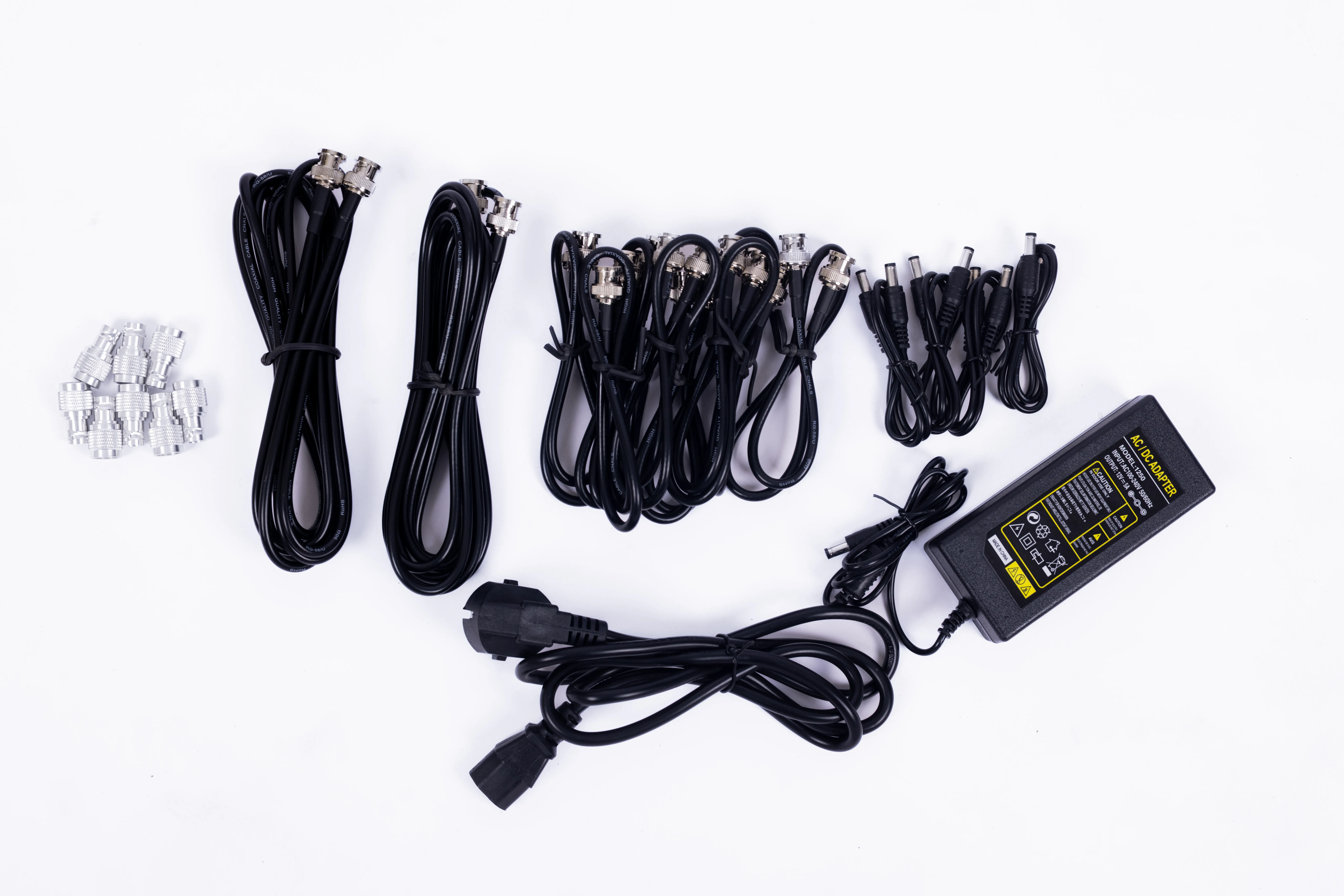

- Cables: 8× BNC (2.5m), 4× BNC-SMC
Technical Specifications
Detailed technical specifications for SV-990 system
| Frequency Range | 400-950MHz |
|---|
| Antenna Gain | 7.5dBi |
|---|
| Output Connectors | 8× BNC, 4× BNC-SMC |
|---|
| Impedance | 50Ω |
|---|
| Power Supply | DC 12V/2A adapter (included) |
|---|
| Power Consumption | 20W max |
|---|
| Operating Temperature | -20°C to +60°C |
|---|
Recommended Applications
Concerts
Theater Productions
Broadcast Studios
Corporate Events
Conferences
Live Streaming
